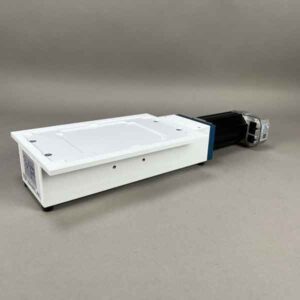

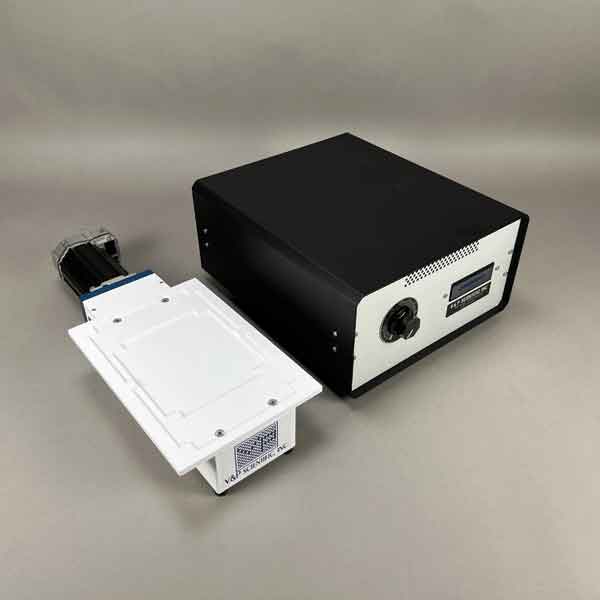

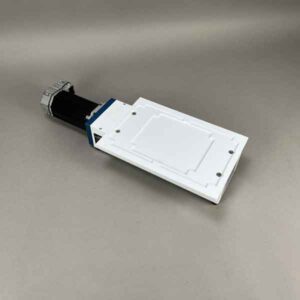

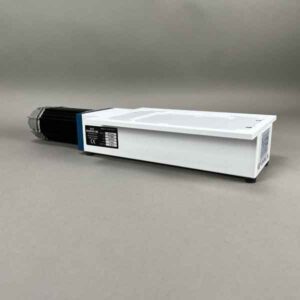

Vertical Tumble Stirrer, 2 SLAS Positions, Manual Control

Add to quote
SKU VP 710C5-7AZ Categories , , Tags , , ,

STIRRER, Vertical Tumble, Servo Motor, High Speed and High Torque, Low Profile, 16.5cm Long Usable Stirring Deck, Stirs 2 Deep Well Microplates or 6 Standard Microplates (stacked), Space for Gripper Access Between Plates, RPM readout on Control Unit LCD, 120/220 Volts, 60/50 Hz, CE Compliant

Container Used

Microplates, Syringes, Tubes, Vials
Mode of Use

Benchtop, Robotic Pipettor
Control Type

Manual Control
Magnetic Cylinder Length

177.8mm
Length

431.50mm
Width

152.40mm
Height

63.50mm
Motor Coupling

Direct Drive
Motor Specs

Closed System Servo, NEMA 23, Quad Stack
Power Supply Output

75VDC, 5A
Power Supply Input

120/220V
Frequency

50/60 Hz
CE Compliant

Yes
Material

ABS
Magnet Strength

48MGO
Max RPM

1500
Alligator Vertical Tumble Stirrers

The Alligator Magnetic Vertical Tumble Stirrer uses patented stir-cylinder technology to mix large numbers of samples in tubes, vials, bottles, and microplates (USA Patent #6,176,609). Instead of spinning a magnetic stir bar about the horizontal plane like the standard magnetic flask stirrer, the Alligator Vertical Tumble Stirrer causes stir elements of all sizes and shapes to tumble vertically end-over-end inside each well or vessel. The Alligator Vertical Tumble Stirrer will stir all types of microplates of any volume or format.  It will also stir V and U bottom microplates, PCR plates, micro-centrifuge tubes, test tubes, syringes, vials and bottles, and specially designed troughs and reservoirs.

Advantages of the Vertical Tumble Stirring System
  • Can stir in any vessel regardless of the size or shape
  • High–Throughput Stirring in stacks of Microplates
  • Can increase the aeration of microbial cultures and increase yield
  • Complete stirring of large numbers of samples
  • Can stir chemical reactions to speed completion
  • Can stir and heat to 200°C at the same time
  • Can run multiple experiments in parallel
  • Get more reactions per gram of starting material
  • Will stir even 100,000 centistoke viscous solutions (6.6 times more viscous than honey)
  • Will stir even thick slurries and emulsions
  • No cross contamination – wells do not have to be sealed
  • Simple to operate, full-speed control
  • Can set exact RPM for reproducible results day to day
  • Designed to be compatible with most robotic systems
  • Flexibility of stir deck alignment
  • Custom designs are not a problem
  • Durable – Can stir continuously for years without maintenance
  • Computer control available
  • Available in 110 volt and 220 volt (CE compliant) versions

Many Models Available

Using the most powerful permanent magnets manufactured, we make many different models of Vertical Tumble Stirrers that fit the many varied applications and requirements of our customers. Requirements for heating and continuous stirring for a long period of time demand special Vertical Tumble Stirrers that are resistant to heat and with motors capable of working under high loads for extended periods. We make our Vertical Tumble Stirrers heat resistant using Mica.  The Mica deck will accommodate three of our V&P heat blocks operating at 200°C. Please check with our knowledgeable staff to help you make the appropriate selection for your application. Our specialty is flexibility- let us know if you have a custom application today!

Published Articles

See published articles that cite using our Stirrer products.


Stir Elements Designed for Vertical Tumble Stirring

We offer a large assortment of economical magnetic Stainless Steel Stir Elements from Stir StiXs to Discs to bars and dowels to fit into any well, vial, tube, or syringe.  Check out the Stir Element page for more information on coatings and dimensions.

We also sell Alnico and Rare Earth Magnetic Stir Bars for more viscous solutions.

Tumble Stirring Viscous Solutions

The ability to stir extremely viscous solutions, slurries, and emulsions is a very useful characteristic of the V&P Alligator Tumble Stirrers.  Our Vertical Tumble Stirrers and Stir Elements have the ability to mix even solutions of 100,000 centistokes (6.6 times more viscous than honey).

V&P Scientific’s Unique and Patented Vertical Tumble Stirring Systems Applications



Multiple Tube or Microplate Stirring
  • Stir and mix
    • Any solution
    • Any shape
    • Any viscosity
Microplate Vertical Tumble Stirring
  • Process Parallel synthetic reactions
  • Facilitates Micro-fermentation reactions
  • Parallel Artificial Membrane system to evaluate absorption
  • Mix and aerate cultures to increase yield
  • Solubilize compounds dried in microplates
  • Mix bread dough
  • Quantitative measure of cytotoxicity of anticancer drugs and other agents
  • High throughput solubility determination with application to selection of compounds for fragment screening
  • Parallel fed-batch cultivations in micro bioreactors
  • High-throughput cocrystal slurry screening
  • Photosynthetic efficiency and oxygen evolution of Chlamydomonas reinhardtii
  • Cannabinoids inhibit the respiration of human sperm
Heating/Cooling With Vertical Tumble Stirring
  • Solubility studies
  • Adaptive Laboratory Evolution
  • Growth Rate, Metabolite Production, and Final Biomass in a Tumble Stirred Culture Vessel
  • Measurement of oxygen consumption by murine tissues in vitro
  • Miniaturization of fermentations and chemical reactions
  • Stirring chemical reactions to speed completion
  • Simultaneous stirring at 3 different temperatures to determine optimum temperature for a reaction
  • Heat and Stir to facilitate compound synthesis
Reservoir Vertical Tumble Stirring to keep Particulates in Suspension
  • Magnetic bead suspensions
  • High-Resolution Profiling of Stationary-Phase Survival Reveals Yeast Longevity Factors and Their Genetic Interactions
  • Glass bead suspensions (yttrium oxide SPA beads)
  • Agarose bead suspensions
  • Micro-organism suspensions
  • Slurry suspensions
  • Expression of a fungal ferulic acid esterase in alfalfa modifies cell wall digestibility
  • Particulate suspensions
  • High throughput solubility determination with application to selection of compounds for fragment screening
Vertical Tumble Stirring Applications
  • Rapid and efficient stirring of any format microplates, test tubes, vials, and syringes
  • Thorough mixing of 2 or more liquid solutions
  • Thorough mixing of slurries, viscous solutions, and emulsions
  • Thorough mixing of immiscible liquids
  • Keep particulates in suspension
  • Resuspend chemical libraries after storage
  • Aeration of microbial cultures to increase DNA or protein yield
  • Enables parallel synthetic development of processes
  • Resuspend settled microorganisms
  • Keep microorganisms suspended during gridding operations
  • Break up filamentous organisms
  • Dissolve solid compounds
  • Resoluabilize dried extracts from large screening libraries
  • Mix and immobilize reactions that use magnetic beads
  • Computer control for use on automated liquid handling platforms
Magnetic Field Strength versus Distance from the Alligator Magnetic Tumble Stirrer Deck
Makers of cardiac pacemakers have placed magnetic switches in them that can be activated when the pacemaker is in a 5-gauss magnetic field. The critical 5 gauss line varies from 5.5″ to 22.8″ above the deck or cylinder guard with our Alligator Tumble Stirrers. The graph indicates that the magnetic field falls off very fast with distance. The distance above the deck to achieve a 5-gauss reading is 10″ for the VP 710C5-7A and 16″ for the VP 710E5X.

However, as a safety factor, we recommend that people with pacemakers keep at least 36″ or 91 cm from the Alligator Vertical Tumble Stirrers and the Vortex Lateral Tumble Stirrer. V&P does not make any claims in regard to the validity of the 5 gauss threshold for deactivating implanted medical devices. The 5 gauss magnetic field is a guideline to avoid risks associated with magnets and implanted medical devices such as pacemakers. For more information, please consult your physician.  We try to position the magnet as close to the deck as possible given the constraints of the magnetic cylinders and deck design. Note the distance between the magnet surface and the surface of the deck varies for each magnetic tumble stirrer design and thus the gauss levels at the surface of the deck vary.
